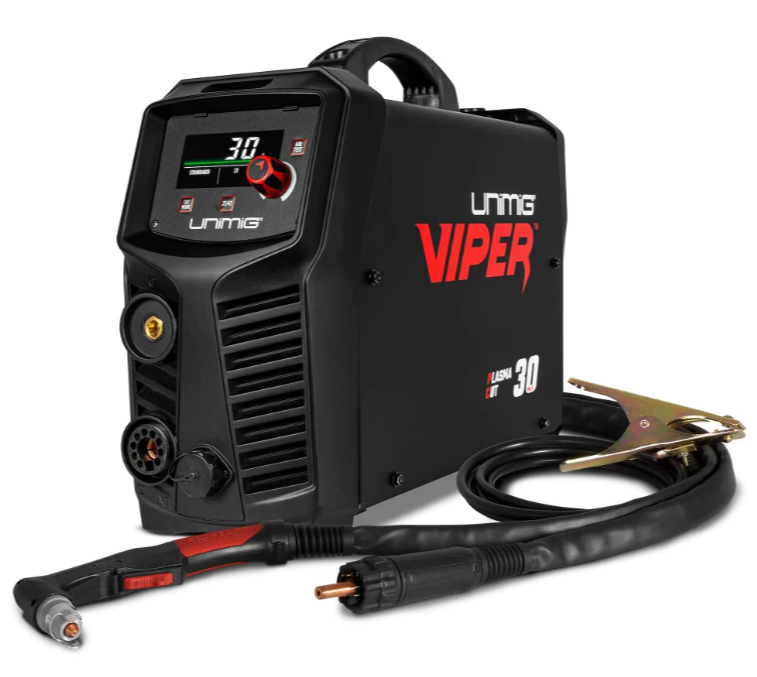

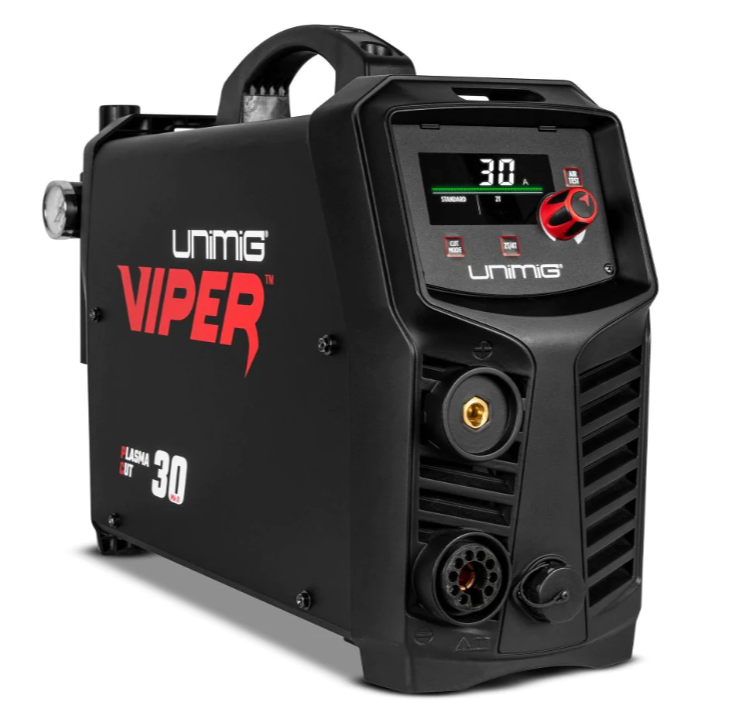

Unimig U14005K Viper Cut 30 MK II Plasma Cutter
🛡️ Delivered to your door with a guarantee of original products and 100% customer satisfaction.
🚚 Order today and get it delivered to your door ASAP. Easy return guarantee!
$779.00
3
People watching this product now!
Description
Cut anything, anywhere. Whether it’s solid or perforated metal, you’ll get a clean cut up to 12mm thick. Now with the addition of a CNC connection, the VIPER CUT 30 Mk II can handle anything you throw at it.
Features:
- 10 AMP PLUG – CONNECT TO ANY STANDARD OUTLET.
- 12mm CLEAN CUT – MILD STEEL.
- 2T/4T TORCH CONTROLS – MORE COMFORT WHEN CUTTING.
- CNC Connection – CONNECT TO A CNC TABLE.
Specifications:
MACHINE SPECIFICATIONS
- PRIMARY INPUT VOLTAGE: 240V Single Phase
- SUPPLY PLUG: 10 AMP
- RATED INPUT POWER (kVA): 7.5
- RATED OUTPUT: 92V
- PROTECTION CLASS: IP21S
- INSULATION CLASS: F
- MINIMUM GENERATOR (kVA): 8.0
- DINSE CONNECTOR: 10/25
- STANDARD: AS/NZ60974-1
- WARRANTY (Years): 2
SIZE & WEIGHT
- DIMENSIONS (mm): 534x166x343mm
- WEIGHT (kg): 8.5kg
PLASMA CUT SPECIFICATIONS
- PLASMA CUT CURRENT RANGE: 20-30A
- PLASMA CUT DUTY CYCLE @ 40°C: 15% @ 30A / 60% @ 23A / 100% @ 20A
- MILD STEEL CUT THICKNESS: 12mm
- MILD STEEL SEVERANCE THICKNESS: 14mm
- ALUMINIUM CUT THICKNESS: 6mm
- ALUMINIUM SEVERANCE THICKNESS: 8mm
- STAINLESS STEEL CUT THICKNESS: 6mm
- STAINLESS STEEL SEVERANCE THICKNESS: 8mm
- AIR FLOW DRAW OFF (L/min): 170
- AIR FLOW PRESSURE (Bar): 5-6 (70-87 psi)
- PLASMA ARC START: Pilot Arc
Includes:
- VIPER™ CUT 30 Mk II Plasma Cutter

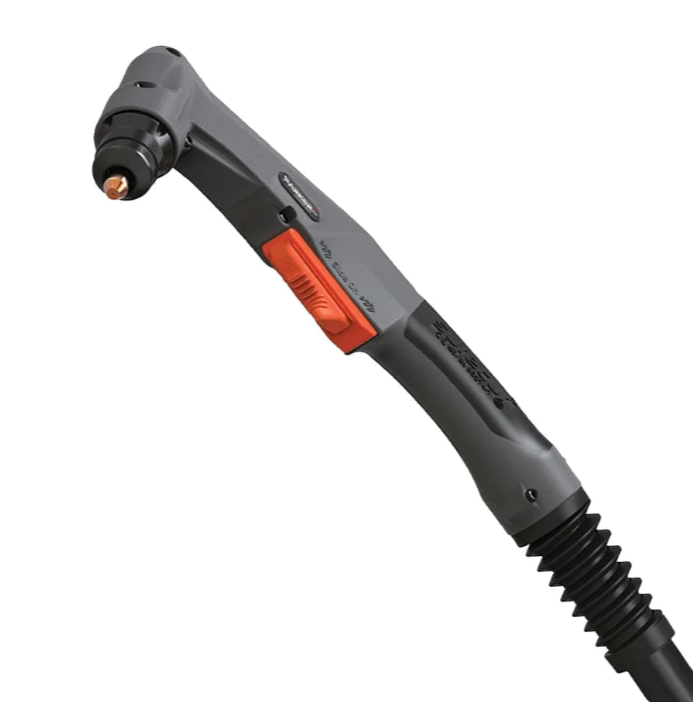

- 4m SC30 Plasma Torch
- 3m 300A Earth Clamp
- Air Regulator
- Operating Manual
